stopCh := ctx.Done()
	delayedStopCh := s.lifecycleSignals.AfterShutdownDelayDuration
	shutdownInitiatedCh := s.lifecycleSignals.ShutdownInitiated

	// Clean up resources on shutdown.
	defer s.Destroy()

	// If UDS profiling is enabled, start a local http server listening on that socket
	if s.UnprotectedDebugSocket != nil {
		go func() {
			defer utilruntime.HandleCrash()
			klog.Error(s.UnprotectedDebugSocket.Run(stopCh))
		}()
	}

	// spawn a new goroutine for closing the MuxAndDiscoveryComplete signal
	// registration happens during construction of the generic api server
	// the last server in the chain aggregates signals from the previous instances
	go func() {
		for _, muxAndDiscoveryCompletedSignal := range s.GenericAPIServer.MuxAndDiscoveryCompleteSignals() {
			select {
			case <-muxAndDiscoveryCompletedSignal:
				continue
			case <-stopCh:
				klog.V(1).Infof("haven't completed %s, stop requested", s.lifecycleSignals.MuxAndDiscoveryComplete.Name())
				return
			}
		}
		s.lifecycleSignals.MuxAndDiscoveryComplete.Signal()
		klog.V(1).Infof("%s has all endpoints registered and discovery information is complete", s.lifecycleSignals.MuxAndDiscoveryComplete.Name())
	}()

	go func() {
		defer delayedStopCh.Signal()
		defer klog.V(1).InfoS("[graceful-termination] shutdown event", "name", delayedStopCh.Name())

		<-stopCh

		// As soon as shutdown is initiated, /readyz should start returning failure.
		// This gives the load balancer a window defined by ShutdownDelayDuration to detect that /readyz is red
		// and stop sending traffic to this server.
		shutdownInitiatedCh.Signal()
		klog.V(1).InfoS("[graceful-termination] shutdown event", "name", shutdownInitiatedCh.Name())

		time.Sleep(s.ShutdownDelayDuration)
	}()

	// close socket after delayed stopCh
	shutdownTimeout := s.ShutdownTimeout
	if s.ShutdownSendRetryAfter {
		// when this mode is enabled, we do the following:
		// - the server will continue to listen until all existing requests in flight
		//   (not including active long running requests) have been drained.
		// - once drained, http Server Shutdown is invoked with a timeout of 2s,
		//   net/http waits for 1s for the peer to respond to a GO_AWAY frame, so
		//   we should wait for a minimum of 2s
		shutdownTimeout = 2 * time.Second
		klog.V(1).InfoS("[graceful-termination] using HTTP Server shutdown timeout", "shutdownTimeout", shutdownTimeout)
	}

	notAcceptingNewRequestCh := s.lifecycleSignals.NotAcceptingNewRequest
	drainedCh := s.lifecycleSignals.InFlightRequestsDrained
	// Canceling the parent context does not immediately cancel the HTTP server.
	// We only inherit context values here and deal with cancellation ourselves.
	stopHTTPServerCtx, stopHTTPServer := context.WithCancelCause(context.WithoutCancel(ctx))
	go func() {
		defer stopHTTPServer(errors.New("time to stop HTTP server"))

		timeToStopHttpServerCh := notAcceptingNewRequestCh.Signaled()
		if s.ShutdownSendRetryAfter {
			timeToStopHttpServerCh = drainedCh.Signaled()
		}

		<-timeToStopHttpServerCh
	}()

	// Start the audit backend before any request comes in. This means we must call Backend.Run
	// before http server start serving. Otherwise the Backend.ProcessEvents call might block.
	// AuditBackend.Run will stop as soon as all in-flight requests are drained.
	if s.AuditBackend != nil {
		if err := s.AuditBackend.Run(drainedCh.Signaled()); err != nil {
			return fmt.Errorf("failed to run the audit backend: %v", err)
		}
	}

	stoppedCh, listenerStoppedCh, err := s.NonBlockingRunWithContext(stopHTTPServerCtx, shutdownTimeout)
	if err != nil {
		return err
	}

	httpServerStoppedListeningCh := s.lifecycleSignals.HTTPServerStoppedListening
	go func() {
		<-listenerStoppedCh
		httpServerStoppedListeningCh.Signal()
		klog.V(1).InfoS("[graceful-termination] shutdown event", "name", httpServerStoppedListeningCh.Name())
	}()

	// we don't accept new request as soon as both ShutdownDelayDuration has
	// elapsed and preshutdown hooks have completed.
	preShutdownHooksHasStoppedCh := s.lifecycleSignals.PreShutdownHooksStopped
	go func() {
		defer klog.V(1).InfoS("[graceful-termination] shutdown event", "name", notAcceptingNewRequestCh.Name())
		defer notAcceptingNewRequestCh.Signal()

		// wait for the delayed stopCh before closing the handler chain
		<-delayedStopCh.Signaled()

		// Additionally wait for preshutdown hooks to also be finished, as some of them need
		// to send API calls to clean up after themselves (e.g. lease reconcilers removing
		// itself from the active servers).
		<-preShutdownHooksHasStoppedCh.Signaled()
	}()

	// wait for all in-flight non-long running requests to finish
	nonLongRunningRequestDrainedCh := make(chan struct{})
	go func() {
		defer close(nonLongRunningRequestDrainedCh)
		defer klog.V(1).Info("[graceful-termination] in-flight non long-running request(s) have drained")

		// wait for the delayed stopCh before closing the handler chain (it rejects everything after Wait has been called).
		<-notAcceptingNewRequestCh.Signaled()

		// Wait for all requests to finish, which are bounded by the RequestTimeout variable.
		// once NonLongRunningRequestWaitGroup.Wait is invoked, the apiserver is
		// expected to reject any incoming request with a {503, Retry-After}
		// response via the WithWaitGroup filter. On the contrary, we observe
		// that incoming request(s) get a 'connection refused' error, this is
		// because, at this point, we have called 'Server.Shutdown' and
		// net/http server has stopped listening. This causes incoming
		// request to get a 'connection refused' error.
		// On the other hand, if 'ShutdownSendRetryAfter' is enabled incoming
		// requests will be rejected with a {429, Retry-After} since
		// 'Server.Shutdown' will be invoked only after in-flight requests
		// have been drained.
		// TODO: can we consolidate these two modes of graceful termination?
		s.NonLongRunningRequestWaitGroup.Wait()
	}()

	// wait for all in-flight watches to finish
	activeWatchesDrainedCh := make(chan struct{})
	go func() {
		defer close(activeWatchesDrainedCh)

		<-notAcceptingNewRequestCh.Signaled()
		if s.ShutdownWatchTerminationGracePeriod <= time.Duration(0) {
			klog.V(1).InfoS("[graceful-termination] not going to wait for active watch request(s) to drain")
			return
		}

		// Wait for all active watches to finish
		grace := s.ShutdownWatchTerminationGracePeriod
		activeBefore, activeAfter, err := s.WatchRequestWaitGroup.Wait(func(count int) (utilwaitgroup.RateLimiter, context.Context, context.CancelFunc) {
			qps := float64(count) / grace.Seconds()
			// TODO: we don't want the QPS (max requests drained per second) to
			//  get below a certain floor value, since we want the server to
			//  drain the active watch requests as soon as possible.
			//  For now, it's hard coded to 200, and it is subject to change
			//  based on the result from the scale testing.
			if qps < 200 {
				qps = 200
			}

			ctx, cancel := context.WithTimeout(context.Background(), grace)
			// We don't expect more than one token to be consumed
			// in a single Wait call, so setting burst to 1.
			return rate.NewLimiter(rate.Limit(qps), 1), ctx, cancel
		})
		klog.V(1).InfoS("[graceful-termination] active watch request(s) have drained",
			"duration", grace, "activeWatchesBefore", activeBefore, "activeWatchesAfter", activeAfter, "error", err)
	}()

	go func() {
		defer klog.V(1).InfoS("[graceful-termination] shutdown event", "name", drainedCh.Name())
		defer drainedCh.Signal()

		<-nonLongRunningRequestDrainedCh
		<-activeWatchesDrainedCh
	}()

	klog.V(1).Info("[graceful-termination] waiting for shutdown to be initiated")
	<-stopCh

	// run shutdown hooks directly. This includes deregistering from
	// the kubernetes endpoint in case of kube-apiserver.
	func() {
		defer func() {
			preShutdownHooksHasStoppedCh.Signal()
			klog.V(1).InfoS("[graceful-termination] pre-shutdown hooks completed", "name", preShutdownHooksHasStoppedCh.Name())
		}()
		err = s.RunPreShutdownHooks()
	}()
	if err != nil {
		return err
	}

	// Wait for all requests in flight to drain, bounded by the RequestTimeout variable.
	<-drainedCh.Signaled()

	if s.AuditBackend != nil {
		s.AuditBackend.Shutdown()
		klog.V(1).InfoS("[graceful-termination] audit backend shutdown completed")
	}

	// wait for stoppedCh that is closed when the graceful termination (server.Shutdown) is finished.
	<-listenerStoppedCh
	<-stoppedCh

	klog.V(1).Info("[graceful-termination] apiserver is exiting")
	return nil

// 代码: staging/src/k8s.io/apiserver/pkg/server/genericapiserver.go
	stoppedCh, listenerStoppedCh, err := s.NonBlockingRunWithContext(stopHTTPServerCtx, shutdownTimeout)
	if err != nil {
		return err
	}

// 代码: staging\src\k8s.io\apiserver\pkg\server\genericapiserver.go#L748

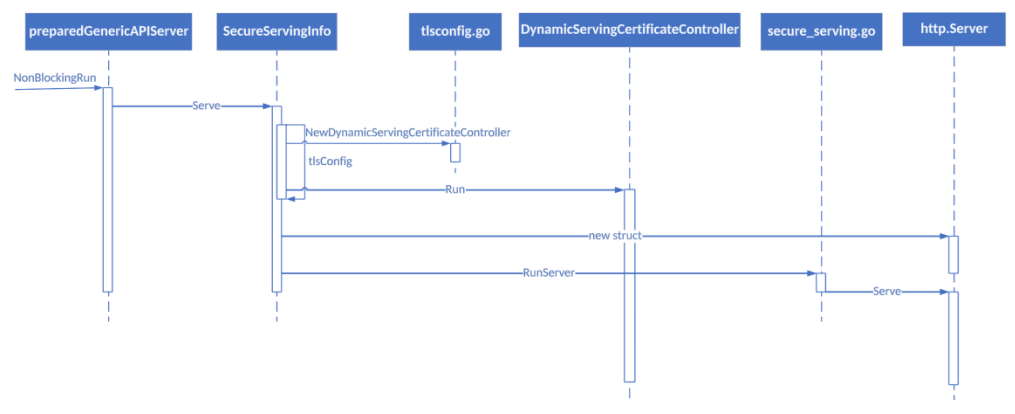

// NonBlockingRunWithContext spawns the secure http server. An error is
// returned if the secure port cannot be listened on.
// The returned channel is closed when the (asynchronous) termination is finished.
func (s preparedGenericAPIServer) NonBlockingRunWithContext(ctx context.Context, shutdownTimeout time.Duration) (<-chan struct{}, <-chan struct{}, error) {
	// Use an internal stop channel to allow cleanup of the listeners on error.
	internalStopCh := make(chan struct{})
	var stoppedCh <-chan struct{}
	var listenerStoppedCh <-chan struct{}
	if s.SecureServingInfo != nil && s.Handler != nil {
		var err error
		stoppedCh, listenerStoppedCh, err = s.SecureServingInfo.Serve(s.Handler, shutdownTimeout, internalStopCh)
		if err != nil {
			close(internalStopCh)
			return nil, nil, err
		}
	}

	// Now that listener have bound successfully, it is the
	// responsibility of the caller to close the provided channel to
	// ensure cleanup.
	go func() {
		<-ctx.Done()
		close(internalStopCh)
	}()

	s.RunPostStartHooks(ctx)

	if _, err := systemd.SdNotify(true, "READY=1\n"); err != nil {
		klog.Errorf("Unable to send systemd daemon successful start message: %v\n", err)
	}

	return stoppedCh, listenerStoppedCh, nil
}

// 代码: staging\src\k8s.io\apiserver\pkg\server\secure_serving.go#L155
// Serve runs the secure http server. It fails only if certificates cannot be loaded or the initial listen call fails.
// The actual server loop (stoppable by closing stopCh) runs in a go routine, i.e. Serve does not block.
// It returns a stoppedCh that is closed when all non-hijacked active requests have been processed.
// It returns a listenerStoppedCh that is closed when the underlying http Server has stopped listening.
func (s *SecureServingInfo) Serve(handler http.Handler, shutdownTimeout time.Duration, stopCh <-chan struct{}) (<-chan struct{}, <-chan struct{}, error) {
	if s.Listener == nil {
		return nil, nil, fmt.Errorf("listener must not be nil")
	}

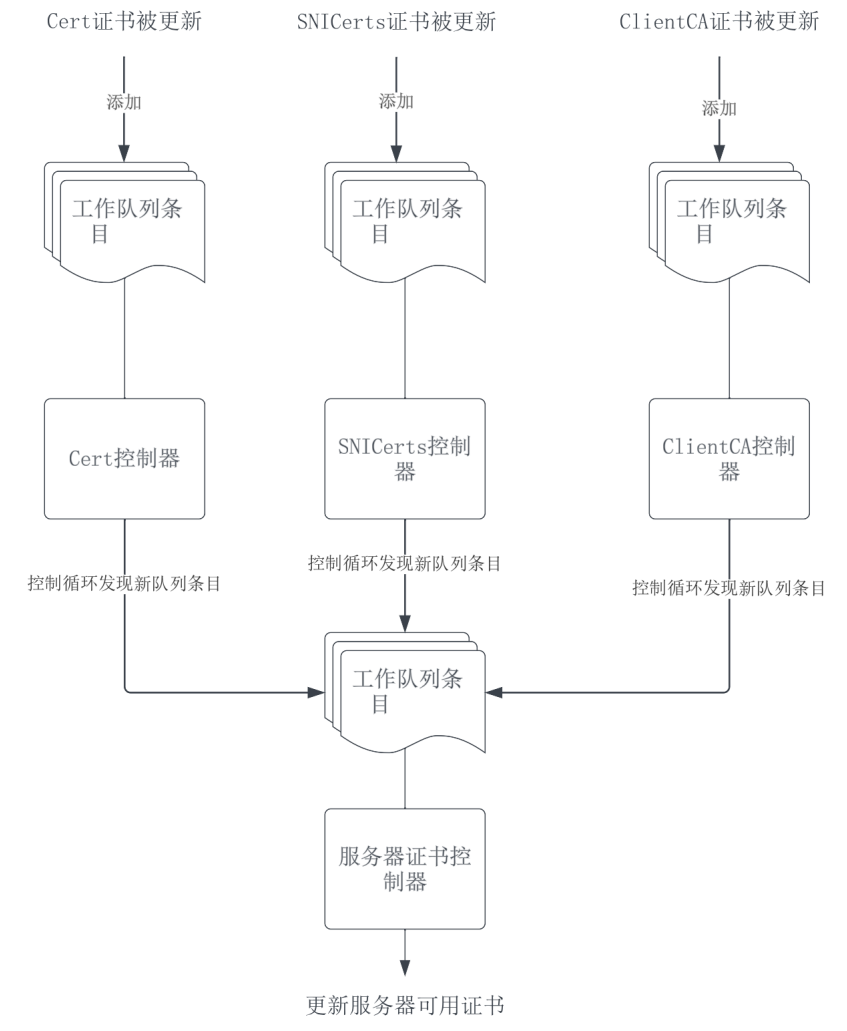

	tlsConfig, err := s.tlsConfig(stopCh) //要点①
	if err != nil {
		return nil, nil, err
	}

	secureServer := &http.Server{
		Addr:           s.Listener.Addr().String(),
		Handler:        handler,
		MaxHeaderBytes: 1 << 20,
		TLSConfig:      tlsConfig,

		IdleTimeout:       90 * time.Second, // matches http.DefaultTransport keep-alive timeout
		ReadHeaderTimeout: 32 * time.Second, // just shy of requestTimeoutUpperBound
	}

	if !s.DisableHTTP2 { //要点②
		// At least 99% of serialized resources in surveyed clusters were smaller than 256kb.
		// This should be big enough to accommodate most API POST requests in a single frame,
		// and small enough to allow a per connection buffer of this size multiplied by `MaxConcurrentStreams`.
		const resourceBody99Percentile = 256 * 1024

		http2Options := &http2.Server{
			IdleTimeout: 90 * time.Second, // matches http.DefaultTransport keep-alive timeout
			// shrink the per-stream buffer and max framesize from the 1MB default while still accommodating most API POST requests in a single frame
			MaxUploadBufferPerStream: resourceBody99Percentile,
			MaxReadFrameSize:         resourceBody99Percentile,
		}

		// use the overridden concurrent streams setting or make the default of 250 explicit so we can size MaxUploadBufferPerConnection appropriately
		if s.HTTP2MaxStreamsPerConnection > 0 {
			http2Options.MaxConcurrentStreams = uint32(s.HTTP2MaxStreamsPerConnection)
		} else {
			// match http2.initialMaxConcurrentStreams used by clients
			// this makes it so that a malicious client can only open 400 streams before we forcibly close the connection
			// https://github.com/golang/net/commit/b225e7ca6dde1ef5a5ae5ce922861bda011cfabd
			http2Options.MaxConcurrentStreams = 100
		}

		// increase the connection buffer size from the 1MB default to handle the specified number of concurrent streams
		http2Options.MaxUploadBufferPerConnection = http2Options.MaxUploadBufferPerStream * int32(http2Options.MaxConcurrentStreams)
		// apply settings to the server
		if err := http2.ConfigureServer(secureServer, http2Options); err != nil {
			return nil, nil, fmt.Errorf("error configuring http2: %v", err)
		}
	}

	// use tlsHandshakeErrorWriter to handle messages of tls handshake error
	tlsErrorWriter := &tlsHandshakeErrorWriter{os.Stderr}
	tlsErrorLogger := log.New(tlsErrorWriter, "", 0)
	secureServer.ErrorLog = tlsErrorLogger

	klog.Infof("Serving securely on %s", secureServer.Addr)
	return RunServer(secureServer, s.Listener, shutdownTimeout, stopCh) //要点③
}

// 代码: staging\src\k8s.io\apiserver\pkg\server\secure_serving.go#L45
// tlsConfig produces the tls.Config to serve with.
func (s *SecureServingInfo) tlsConfig(stopCh <-chan struct{}) (*tls.Config, error) {
	...
	if s.ClientCA != nil || s.Cert != nil || len(s.SNICerts) > 0 {
		dynamicCertificateController := dynamiccertificates.NewDynamicServingCertificateController( // 要点①
			tlsConfig,
			s.ClientCA,
			s.Cert,
			s.SNICerts,
			nil, // TODO see how to plumb an event recorder down in here. For now this results in simply klog messages.
		)

		if s.ClientCA != nil { // 要点②
			s.ClientCA.AddListener(dynamicCertificateController)
		}
		if s.Cert != nil { // 要点②
			s.Cert.AddListener(dynamicCertificateController)
		}
		// generate a context from stopCh. This is to avoid modifying files which are relying on apiserver
		// TODO: See if we can pass ctx to the current method
		ctx, cancel := context.WithCancel(context.Background())
		go func() {
			select {
			case <-stopCh:
				cancel() // stopCh closed, so cancel our context
			case <-ctx.Done():
			}
		}()
		// start controllers if possible
		if controller, ok := s.ClientCA.(dynamiccertificates.ControllerRunner); ok {
			// runonce to try to prime data.  If this fails, it's ok because we fail closed.
			// Files are required to be populated already, so this is for convenience.
			if err := controller.RunOnce(ctx); err != nil {
				klog.Warningf("Initial population of client CA failed: %v", err)
			}

			go controller.Run(ctx, 1) // 要点③
		}
		if controller, ok := s.Cert.(dynamiccertificates.ControllerRunner); ok {
			// runonce to try to prime data.  If this fails, it's ok because we fail closed.
			// Files are required to be populated already, so this is for convenience.
			if err := controller.RunOnce(ctx); err != nil {
				klog.Warningf("Initial population of default serving certificate failed: %v", err)
			}

			go controller.Run(ctx, 1) // 要点③
		}
		for _, sniCert := range s.SNICerts {
			sniCert.AddListener(dynamicCertificateController) // 要点②
			if controller, ok := sniCert.(dynamiccertificates.ControllerRunner); ok {
				// runonce to try to prime data.  If this fails, it's ok because we fail closed.
				// Files are required to be populated already, so this is for convenience.
				if err := controller.RunOnce(ctx); err != nil {
					klog.Warningf("Initial population of SNI serving certificate failed: %v", err)
				}

				go controller.Run(ctx, 1) // 要点③
			}
		}

		// runonce to try to prime data.  If this fails, it's ok because we fail closed.
		// Files are required to be populated already, so this is for convenience.
		if err := dynamicCertificateController.RunOnce(); err != nil {
			klog.Warningf("Initial population of dynamic certificates failed: %v", err)
		}
		go dynamicCertificateController.Run(1, stopCh)

		tlsConfig.GetConfigForClient = dynamicCertificateController.GetConfigForClient
	}

	return tlsConfig, nil
}

// 代码: staging\src\k8s.io\apiserver\pkg\server\secure_serving.go#L221
// RunServer spawns a go-routine continuously serving until the stopCh is
// closed.
// It returns a stoppedCh that is closed when all non-hijacked active requests
// have been processed.
// This function does not block
// TODO: make private when insecure serving is gone from the kube-apiserver
func RunServer(
	server *http.Server,
	ln net.Listener,
	shutDownTimeout time.Duration,
	stopCh <-chan struct{},
) (<-chan struct{}, <-chan struct{}, error) {
	if ln == nil {
		return nil, nil, fmt.Errorf("listener must not be nil")
	}

	// Shutdown server gracefully.
	serverShutdownCh, listenerStoppedCh := make(chan struct{}), make(chan struct{})
	go func() {// 要点①
		defer close(serverShutdownCh)
		<-stopCh
		ctx, cancel := context.WithTimeout(context.Background(), shutDownTimeout)
		defer cancel()
		err := server.Shutdown(ctx)
		if err != nil {
			klog.Errorf("Failed to shutdown server: %v", err)
		}
	}()

	go func() {
		defer utilruntime.HandleCrash()
		defer close(listenerStoppedCh)

		var listener net.Listener
		listener = tcpKeepAliveListener{ln}
		if server.TLSConfig != nil {
			listener = tls.NewListener(listener, server.TLSConfig)
		}

		err := server.Serve(listener) // 要点②

		msg := fmt.Sprintf("Stopped listening on %s", ln.Addr().String())
		select {
		case <-stopCh:
			klog.Info(msg)
		default:
			panic(fmt.Sprintf("%s due to error: %v", msg, err))
		}
	}()

	return serverShutdownCh, listenerStoppedCh, nil
}
